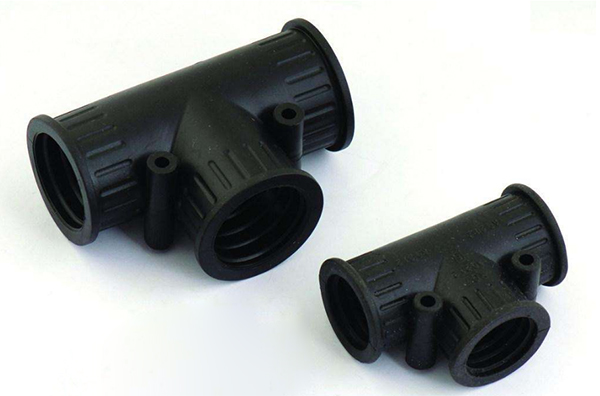

波纹管三通T型接头
|
产品编号 |
DS-T |
|
产品材质 |
采用TPE橡胶原料制成 |
|
工作温度 |
-40℃ ~ ＋100℃ |
|
防护等级 |
IP65 |
|
产品颜色 |
黑色 |
产品参数：
|
型号 |
适配软管尺寸 |
Ф11 |
Ф12 |
Ф13 |
ФB1 |
ФB2 |
ФB3 |
D |
E |
C |
F |
|
DS-T-3×10.0 |
3×10.0 |
7.0 |
7.0 |
7.0 |
17.5 |
17.5 |
17.5 |
46.5 |
32.5 |
18.3 |
4 |
|
DS-T-3×13.0 |
3×13.0 |
10.0 |
10.0 |
10.0 |
21.0 |
21.0 |
21.0 |
51.0 |
36.0 |
21.0 |
4 |
|
DS-T-3×15.8 |
3×15.8 |
14.0 |
14.0 |
14.0 |
25.0 |
25.0 |
25.0 |
63.0 |
44.0 |
24.5 |
4 |
|
DS-T-3×18.5 |
3×18.5 |
15.0 |
15.0 |
15.0 |
26.5 |
26.5 |
26.5 |
70.5 |
48.5 |
24.3 |
4 |
|
DS-T-3×21.2 |
3×21.2 |
18.0 |
18.0 |
18.0 |
29.5 |
29.5 |
29.5 |
71.5 |
50.0 |
29.5 |
4 |
|
DS-T-2×21.2/1×28.5 |
2×21.2/1×28.5 |
18.0 |
25.5 |
18.0 |
32.0 |
36.5 |
32.0 |
78.0 |
51.0 |
38.5 |
4 |
|
DS-T-2×28.5/1×15.8 |
2×28.5/1×15.8 |
25.5 |
14.0 |
25.5 |
36.5 |
25.5 |
36.5 |
65.0 |
56.0 |
24.5 |
4 |
|
DS-T-3×28.5 |
3×28.5 |
25.5 |
25.5 |
25.5 |
36.5 |
36.5 |
36.5 |
77.0 |
57.5 |
37.0 |
4 |
|
DS-T-2×28.5/1×34.5 |
2×28.5/1×34.5 |
25.5 |
31.5 |
25.5 |
36.5 |
42.5 |
36.5 |
83.5 |
57.5 |
42.0 |
4 |
|
DS-T-3×34.5 |
3×34.5 |
31.5 |
31.5 |
31.5 |
42.5 |
42.5 |
42.5 |
85.0 |
64.0 |
42.0 |
4 |
|
DS-T-3×42.5 |
3×42.5 |
39.7 |
39.7 |
39.7 |
52.5 |
52.5 |
52.5 |
96.0 |
74.5 |
52.8 |
4 |
